如何把代码批量转换成打印 pdf 文件?
2024/1/22
有时候我们需要把代码转换成 pdf 文件用于打印,特别是用于软件著作权申请。 但是搜索了一圈,发现基本上各种网页插件、编辑器插件都只能单独地一个文件一个文件处理。
作为一个程序员,当然不能这样傻傻的一个一个处理代码文件。 代码文件数量多、行数长短不一、而且分布在不同的文件夹里。一个一个处理太慢了,效率太低。
今天我们介绍一个把代码批量转换成打印 pdf 文件的小软件,来完成打印代码的任务, 而且可以支持代码行号、语法高亮,可以自定义样式,非常灵活。
总体流程
- 通过
git ls-files
取得需要打印的代码文件路径,生成filelist.txt
文件,调整源码文件为需要的顺序。 - 依次读取这些代码文件,通过
highlight.js
生成 html 文件。 - 使用
puppeteer
依次打开上一步生成的html
文件,转换成pdf
文件。 - 使用
pdf-merger-js
把每个pdf
文件合并起来生成一份代码pdf
文件。 - 使用
pdf-lib
在合并后的pdf
文件页眉添加标识。
使用的技术栈
cloc
计算源码行数
highlight.js
代码着色生成
html
文件puppeteer
打开
html
文件,另存为pdf
文件pdf-merger-js
合并
pdf
文件pdfl-lib
修改
pdf
文件,添加页眉标识
具体实现
我们使用 NodeJS 开发这个软件。
获取要打印的源码文件
此步骤常见方法是通过 git 管理的文件中获取。
在源码目录运行
计算代码行数
sh
cloc $(git ls-files)
获取 git 仓库的文件清单
sh
git ls-files > filelist.txt
生成 filelist.txt
文件后,打开它,清除不需要的 zip/xlsx/png/docx/.gitignore/cache
等文件。
调整文件的排列顺序,以备后续进行合并操作。
读取代码文件生成 html
此步骤使用 highlight.js
完成。
读取出代码文本后,发送给 highlight.js 处理。
js
const html = hljs.highlightAuto(codeStr).value;
在 html 文件 <head>
区域添加
html
<link rel="stylesheet" href="/path/to/styles/default.min.css" />
<script src="/path/to/highlight.min.js"></script>
<script>
hljs.highlightAll();
</script>
把生成的 html 代码插入到一个 html 文件中,左侧是行号,右侧是代码。
js
async function getHtml(srcFilePath) {
const codeStr = await readContent(srcFilePath);
const codeHtml = hljs.highlightAuto(codeStr).value;
const preCode = `<pre><code>${codeHtml}</code></pre>`;
const numberrow = codeStr
.split('\n')
.map((v, i) => fixWidth(i + 1))
.join('\n');
const number = `<pre><code class="language-plaintext" style="border-right: 1px solid #EFEFF5;">${numberrow}</code></pre>`;
const body = `
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>${srcFilePath}</title>
<link rel="stylesheet" href="../head/tomorrow.min.css">
<script src="../head/highlight.min.js"></script>
<script>hljs.highlightAll();</script>
<link rel="stylesheet" href="../head/style.css">
</head>
<body>
<main>
<h1>${srcFilePath}</h1>
<div class="container">
${number}
${preCode}
</div>
</main>
</body>
</html>
`;
return body;
}
生成 pdf 文件
使用 puppeteer
读取生成的 html 文件,打印成 pdf 文件。
js
async function writePdf(contents) {
const browser = await puppeteer.launch({
executablePath: 'C:\\Program Files\\Google\\Chrome\\Application\\chrome.exe'
});
for (const content of contents) {
const page = await browser.newPage(); // 必须要读取文件才能获得正确样式
await page.goto(
`file://C:\\Users\\allen\\company\\tmp\\html-code\\html\\${content}.html`
);
await page.pdf({
margin: {
top: '1cm',
bottom: '1cm',
left: '1cm',
right: '1cm'
},
path: path.join('pdf', `${content}.pdf`),
format: 'a4'
});
}
await browser.close();
}
INFO
为什么不用 wkhtmltopdf
?
起初考虑过使用 wkhtmltopdf,但是经过试用,存在 3 个问题:
- wkhtmltopdf 无法支持 flex/grid 布局,无法实现我的需求。
- wkhtmltopdf 是命令行文件,和 nodejs 组合较麻烦。
- wkhtmltopdf 的仓库目前已经 archive 了。

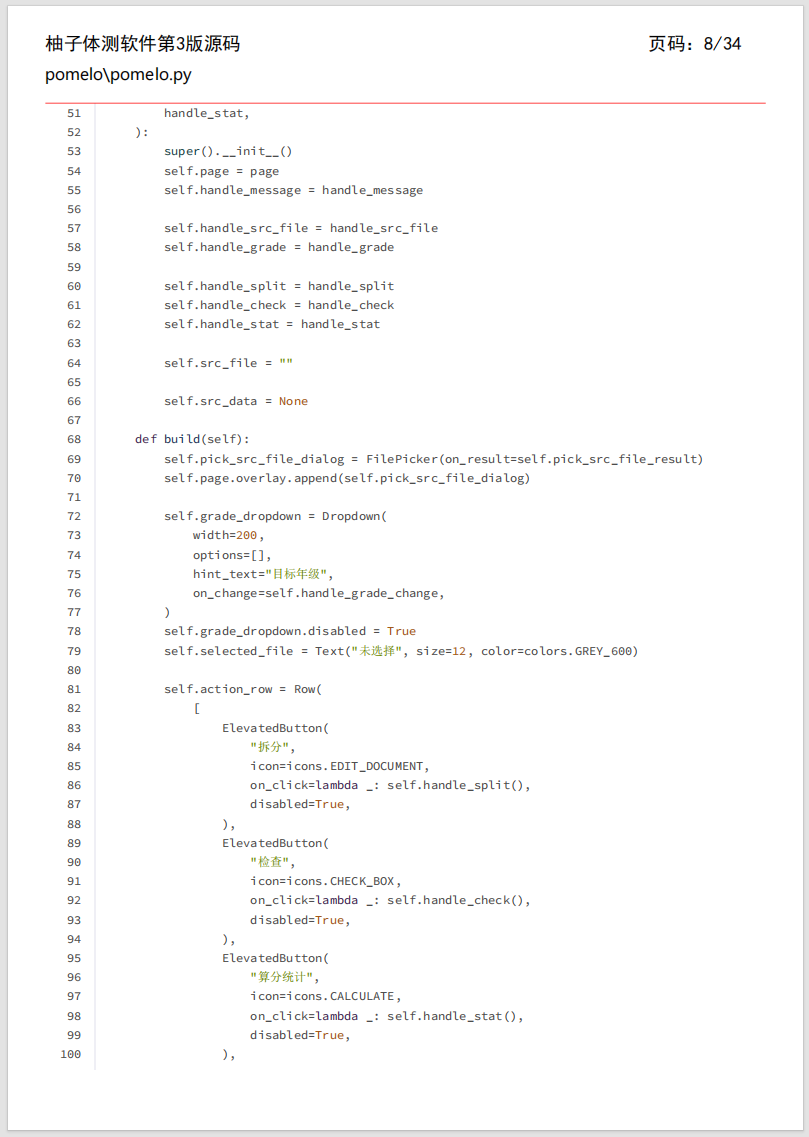

看看源码文件打印的效果
合并 pdf 文件
生成了多个 pdf 文件后,使用 pdf-merger-js
合并多个文件生成一个 pdf 文件。
js
async function mergePdfs(contents, folderName = 'code') {
const merger = new PDFMerger();
for (const content of contents) {
await merger.add(path.join('pdf', `${content}.pdf`));
}
const target = `合并_${folderName}.pdf`;
await merger.save(target);
return target;
}
还可以使用桔子工具合并,一站式制作高质量资料汇编。
一站式制作高质量资料汇编添加页眉标识
使用 pdf-lib
库在 pdf
文件每一页的页眉添加标识。
js
async function addHeader(filePath, header, targetName) {
// open a font synchronously
const fontData = await fs.promises.readFile('simhei.ttf');
// Load a PDFDocument from the existing PDF bytes
const pdfDoc = await PDFDocument.load(await fs.promises.readFile(filePath));
pdfDoc.registerFontkit(fontkit);
const siyuanFont = await pdfDoc.embedFont(fontData);
// Get the first page of the document
const pages = pdfDoc.getPages();
for (const page of pages) {
page.drawText(header, {
x: 280,
y: 810,
size: 16,
font: siyuanFont,
color: rgb(0.95, 0.1, 0.1)
// rotate: degrees(-45)
});
}
// Serialize the PDFDocument to bytes (a Uint8Array)
const pdfBytes = await pdfDoc.save();
const target = tryFileName(`加页眉_${targetName}.pdf`);
await fs.promises.writeFile(target, pdfBytes);
}
实现的代码全文
js
// load the library and ALL languages
const hljs = require('highlight.js');
const fs = require('fs');
const puppeteer = require('puppeteer-core');
const path = require('path');
const PDFMerger = require('pdf-merger-js');
const { mkdir } = require('fs/promises');
function readContent(filePath) {
return new Promise((resolve, reject) => {
fs.readFile(filePath, (err, data) => {
if (err) {
console.error(err);
reject(err);
return;
}
// data 是二进制类型,需要转换成字符串
resolve(data.toString());
});
});
}
function writeContent(filePath, content) {
return new Promise((resolve, reject) => {
const opt = {
flag: 'w' // a:追加写入;w:覆盖写入
};
fs.writeFile(filePath, content, opt, (err) => {
if (err) {
console.error(err);
reject(err);
}
resolve(filePath);
});
});
}
function fixWidth(val) {
const str = ` ${val}`;
return str.substring(str.length - 4);
}
async function getHtml(srcFilePath) {
const codeStr = await readContent(srcFilePath);
const codeHtml = hljs.highlightAuto(codeStr).value;
const preCode = `<pre><code>${codeHtml}</code></pre>`;
const numberrow = codeStr
.split('\n')
.map((v, i) => fixWidth(i + 1))
.join('\n');
const number = `<pre><code class="language-plaintext" style="border-right: 1px solid #EFEFF5;">${numberrow}</code></pre>`;
const body = `
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>${srcFilePath}</title>
<link rel="stylesheet" href="../head/tomorrow.min.css">
<script src="../head/highlight.min.js"></script>
<script>hljs.highlightAll();</script>
<link rel="stylesheet" href="../head/style.css">
</head>
<body>
<main>
<h1>${srcFilePath}</h1>
<div class="container">
${number}
${preCode}
</div>
</main>
</body>
</html>
`;
return body;
}
async function writePdf(contents) {
const browser = await puppeteer.launch({
executablePath: 'C:\\Program Files\\Google\\Chrome\\Application\\chrome.exe'
});
for (const content of contents) {
const page = await browser.newPage();
// await page.setContent(content.html);
// 必须要读取文件才能获得正确样式
await page.goto(
`file://C:\\Users\\allen\\company\\html-code\\html\\${content}.html`
);
console.log('pdf', content);
await page.pdf({
margin: {
top: '1cm',
bottom: '1cm',
left: '1cm',
right: '1cm'
},
path: path.join('pdf', `${content}.pdf`),
format: 'a4'
});
}
await browser.close();
}
async function mergePdfs(contents, folderName = 'code') {
const merger = new PDFMerger();
for (const content of contents) {
await merger.add(path.join('pdf', `${content}.pdf`));
}
await merger.save(`合并_${folderName}.pdf`);
}
function _deleteDirFiles(url) {
let files = [];
if (fs.existsSync(url)) {
//判断给定的路径是否存在
files = fs.readdirSync(url); //返回文件和子目录的数组
files.forEach(function (file, index) {
const curPath = path.join(url, file);
if (fs.statSync(curPath).isDirectory()) {
//同步读取文件夹文件,如果是文件夹,则函数回调
_deleteDirFiles(curPath);
} else {
fs.unlinkSync(curPath); //是指定文件,则删除
console.log('清除文件', url);
}
});
fs.rmdirSync(url); //清除文件夹
} else {
console.log('给定的路径不存在!');
}
}
async function main() {
_deleteDirFiles('html');
_deleteDirFiles('pdf');
mkdir('html');
mkdir('pdf');
if (process.argv.length !== 3) {
console.log(`批量打印生成代码
使用方法:
node index.js <源码文件夹>`);
return;
}
console.log('源码文件夹', process.argv[2]);
const projectFolderName = process.argv[2];
// 文件列表要手工生成,并去除不需要的文件,比如图片、压缩包、不需要的配置文件等
const files = await readContent('filelist.txt');
const filePaths = files.split('\r\n').filter((v) => v);
const contents = [];
for (const file of filePaths) {
const ht = await getHtml(path.join(projectFolderName, file));
const target = file.replace(/\//g, '_');
await writeContent(path.join('html', `${target}.html`), ht);
console.log('html', target);
contents.push(target);
}
await writePdf(contents);
await mergePdfs(contents, path.basename(projectFolderName));
console.log('Done');
}
main();
